Evaluation Architecture

Evaluation is the pillar that transforms raw benchmark data into quantifiable, actionable metrics. This document describes the architecture of the evaluation system and its design principles.

Overview

Concept: Post-Execution Pipeline

Evaluation is decoupled from execution. It occurs after the run is complete, ensuring that the benchmark is not disturbed by expensive calculations.

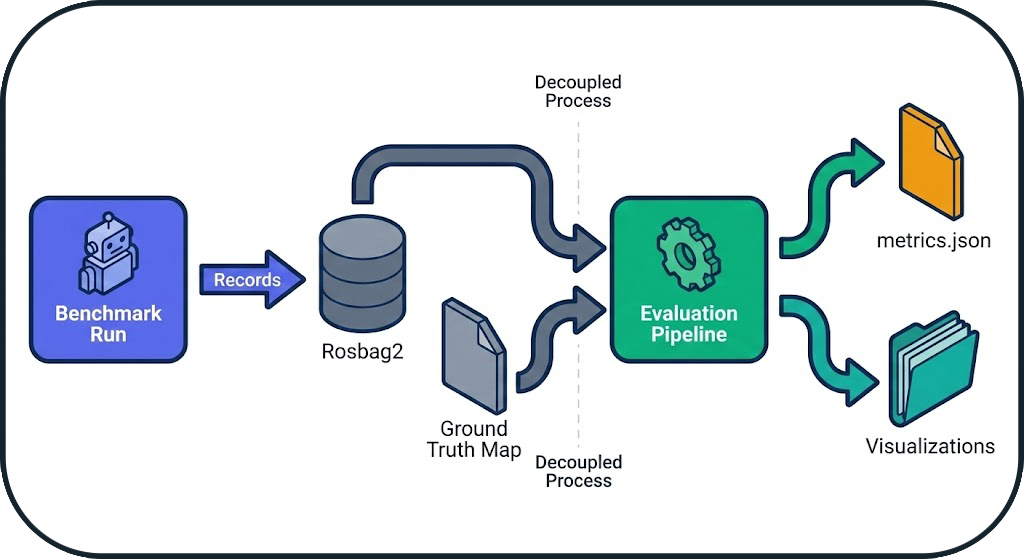

Evaluation Pipeline Overview

Advantage: The system can evaluate past runs without re-running them.

Pipeline Architecture

1. Data Extraction

Source: Rosbag2 recorded during the run

Extracted Data: - SLAM Map: Topic /map (OccupancyGrid) - Trajectory: Topic /odom (Odometry) - Timestamps: Temporal synchronization

Module: evaluation.data_loader

# Conceptual pseudo-code
rosbag = load_rosbag("results/runs/RUN_XXX/rosbag2/")
slam_map = extract_latest_map(rosbag, topic="/map")
trajectory = extract_trajectory(rosbag, topic="/odom")

2. Map Alignment

Problem: SLAM algorithms produce maps in arbitrary frames.

Solution: Automatic alignment based on the robot's spawn origin.

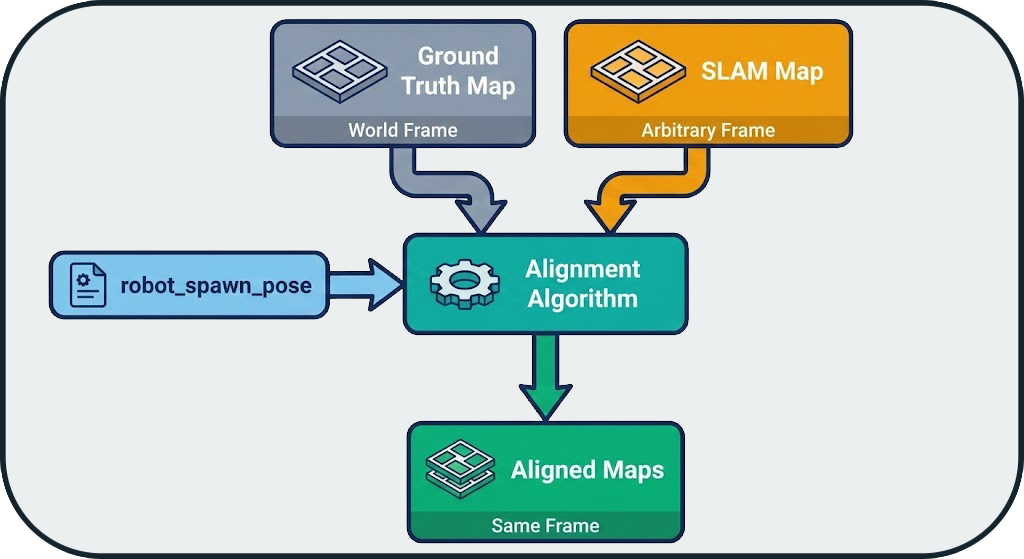

Map Alignment Process

Assumption: The robot starts at a known pose in the GT map (defined in the configuration).

Transformation: Translation + Rotation to superimpose origins.

3. Metrics Calculation

The system calculates 5 complementary metrics to evaluate different aspects of SLAM quality.

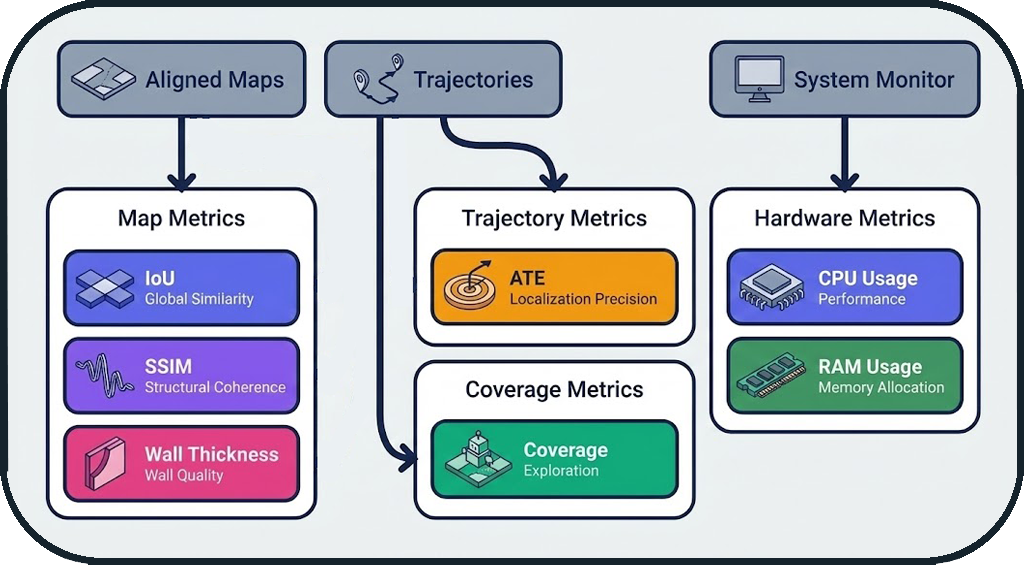

Metrics Architecture

Metrics Architecture

Design Principles

Metric Objective Principle
IoU Measure correct coverage Intersection / Union of occupied areas
SSIM Measure perceptual quality Structural similarity (shapes, contours)
Wall Thickness Measure sharpness Average thickness of detected walls
ATE Measure localization precision Absolute Trajectory Error
Coverage Measure exploration Percentage of free space explored
CPU/RAM Measure performance Average resource consumption

Complementarity of Metrics

Each metric captures a different aspect:

  • IoU: "Did I map the right areas?"
  • SSIM: "Are the shapes correct?"
  • Wall Thickness: "Are the walls sharp or blurry?"
  • ATE: "Is my localization precise?"
  • Coverage: "Did I explore the entire space?"
  • CPU/RAM: "Is the system lightweight or resource-heavy?"

4. Visualization Generation

Objective: Make metrics visually interpretable.

Generated Visualizations:

  1. Overlay Maps: Superimposed GT (red) + SLAM (green)
  2. Difference Heatmap: Difference map (errors in red)
  3. Trajectory Plot: GT vs SLAM trajectory
  4. Coverage Evolution: Coverage graph over time

Module: evaluation.visualizer

Architectural Principles

1. Separation of Concerns

evaluation/
├── data_loader.py      # Rosbag extraction
├── alignment.py        # Map alignment
├── metrics.py          # Metric calculation
├── visualizer.py       # Graph generation
└── report_generator.py # Results aggregation

Each module has a single responsibility and can be tested independently.

2. Reproducibility

Guarantee: Two evaluations of the same rosbag produce the same results.

Mechanism: - No randomness - Fixed parameters (resolution, thresholds) - Determinism of algorithms

3. Extensibility

Adding a new metric:

# evaluation/metrics.py
class NewMetric(BaseMetric):
    def compute(self, gt_map, slam_map):
        # Calculation logic
        return score

Registration:

METRICS_REGISTRY = {
    "iou": IoUMetric(),
    "ssim": SSIMMetric(),
    "new_metric": NewMetric(),  # Addition
}

Evaluation Workflow

Complete Sequence

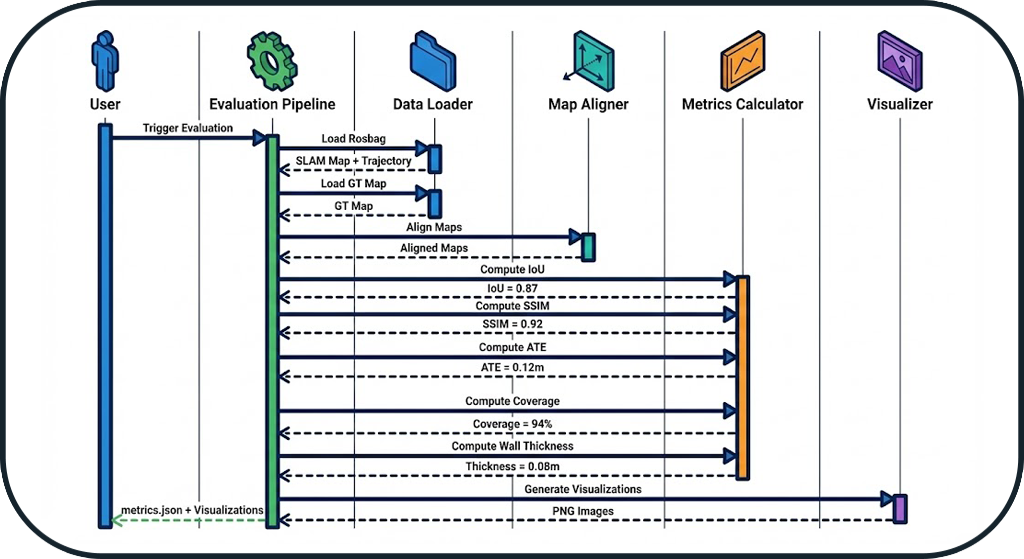

Evaluation Workflow Sequence

Typical Timeline

t=0s     : Rosbag loading (5-10s)
t=10s    : SLAM map extraction
t=15s    : Map alignment (1-2s)
t=17s    : Metrics calculation (10-20s)
t=35s    : Visualization generation (5-10s)
t=45s    : Writing metrics.json

Total Duration: 30-60 seconds (depends on map size)

Edge Case Management

1. Empty SLAM Map

Detection: No occupied cells in /map

Action: Metrics set to 0, warning in logs

2. Missing GT Map

Detection: File map_gt.pgm not found

Action: Automatic generation from SDF (see GT Map Generation)

3. Extreme Misalignment

Detection: IoU < 0.1 after alignment

Action: Attempt realignment with ICP (Iterative Closest Point)

4. Incomplete Trajectory

Detection: Fewer than 10 poses in /odom

Action: ATE marked as "N/A", warning

Optimizations

1. Parallel Calculation

Independent metrics are calculated in parallel:

with ThreadPoolExecutor() as executor:
    futures = {
        executor.submit(compute_iou, gt, slam): "iou",
        executor.submit(compute_ssim, gt, slam): "ssim",
        executor.submit(compute_ate, gt_traj, slam_traj): "ate",
    }

Gain: ~40% reduction in evaluation time

2. GT Map Caching

GT maps are cached to avoid reloading them for each evaluation.

GT_CACHE = {}

def load_gt_map(dataset_name):
    if dataset_name not in GT_CACHE:
        GT_CACHE[dataset_name] = load_pgm(f"maps/{dataset_name}_gt.pgm")
    return GT_CACHE[dataset_name]
