BenchBot evaluates SLAM performance using 5 key metrics. This guide explains what each metric means for your robot's performance, with options to dive deep into the mathematical details.

🎯 1. ATE (Absolute Trajectory Error)

What it measures:
This is the most important metric for localization accuracy. It tells you, on average, how far off the robot's estimated position is from its actual physical location.

Intuitive Understanding:
Imagine drawing the path the robot actually took in blue, and the path the robot thought it took in red. The ATE calculates the average gap between these two lines.

  • Low ATE: The robot knows exactly where it is.
  • High ATE: The robot is lost or drifting.
Deep Dive: Math & Algorithm

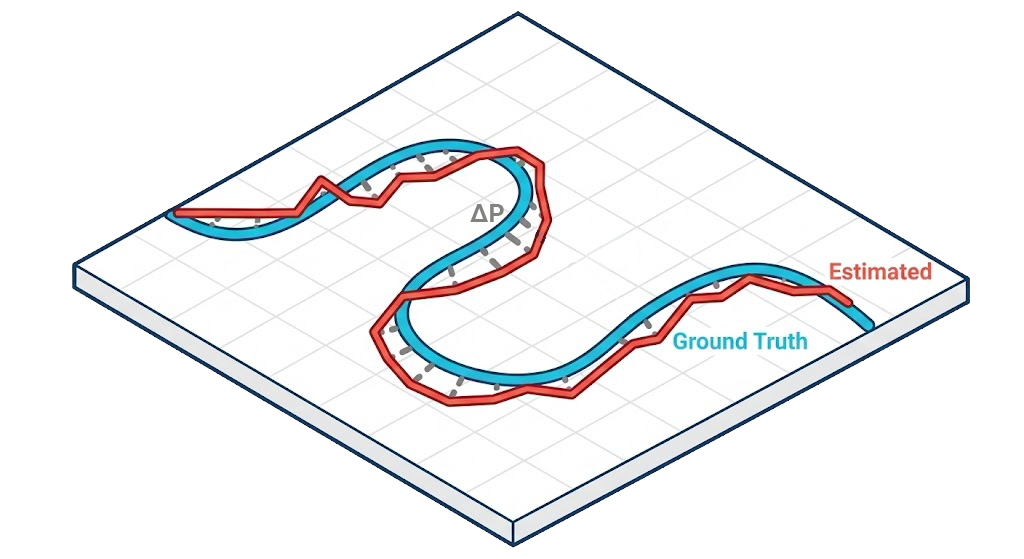

ATE Illustration

Mathematical Definition Given the estimated trajectory sequence \(\mathbf{P}_{est} = \{ \mathbf{p}_1, \dots, \mathbf{p}_N \}\) and the ground truth sequence \(\mathbf{P}_{gt} = \{ \mathbf{q}_1, \dots, \mathbf{q}_N \}\), we first align them using a rigid transformation \(\mathbf{T}\) (rotation \(\mathbf{R}\) and translation \(\mathbf{t}\)) that minimizes the least squares error (typically via the Umeyama algorithm):

\[ \min_{\mathbf{R}, \mathbf{t}} \sum_{i=1}^{N} \| \mathbf{p}_i - (\mathbf{R}\mathbf{q}_i + \mathbf{t}) \|^2 \]

The ATE (specifically, the RMSE - Root Mean Square Error) is then calculated as:

\[ \text{ATE}_{rmse} = \sqrt{\frac{1}{N} \sum_{i=1}^{N} \| \text{trans}(\mathbf{p}_i) - \text{trans}(\mathbf{T}\mathbf{q}_i) \|^2} \]

Where \(\| \cdot \|\) denotes the Euclidean norm.

Value Interpretation Rating
< 0.05m Extremely Precise (Sub-5cm accuracy) ⭐⭐⭐⭐⭐
< 0.15m Good for Indoor Navigation ⭐⭐⭐⭐
> 0.50m Significant Drift / Localization Failure ❌

🗺️ 2. Map Quality (SSIM & IoU)

These metrics answer the question: "Did the robot build a good map?"

SSIM (Structural Similarity)

What it measures:
How "correct" the map looks to a human eye. It checks if walls are straight, corners are sharp, and room layouts are preserved.

Intuitive Understanding:
SSIM Intuitive If you took a photo of the real floor plan and the robot's map, SSIM measures how similar they look in terms of structure. A map can be slightly shifted (bad localization) but still have a perfect Room layout (High SSIM).

Deep Dive: Math & Algorithm

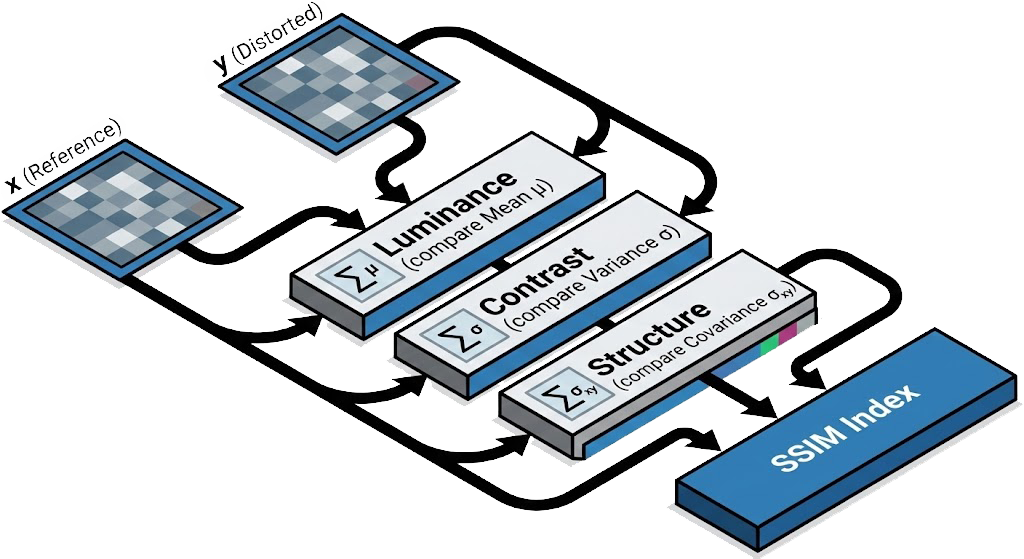

SSIM Illustration

SSIM Formula It combines Luminance (l), Contrast (c), and Structure (s):

\[ \text{SSIM}(x, y) = \frac{(2\mu_x\mu_y + C_1)(2\sigma_{xy} + C_2)}{(\mu_x^2 + \mu_y^2 + C_1)(\sigma_x^2 + \sigma_y^2 + C_2)} \]

Where:

  • \(\mu_x, \mu_y\): Local means (average occupancy probability).
  • \(\sigma_x, \sigma_y\): Local variances (texture/noise).
  • \(\sigma_{xy}\): Cross-covariance.
  • \(C_1, C_2\): Constants to stabilize division.

IoU (Intersection over Union)

What it measures:
The precise overlap between reality and the map.

Intuitive Understanding:
Think of "coloring inside the lines."

  • Intersection: Areas where the robot correctly marked a wall.
  • Union: The total area of walls in both the real world and the robot's map. If the robot creates "ghost walls" or misses real walls, the IoU score drops.
Deep Dive: Math & Algorithm

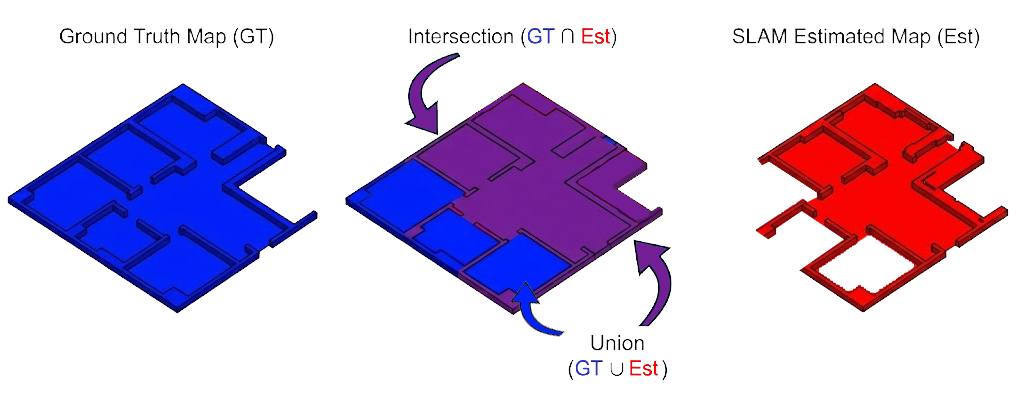

IoU Illustration

Jaccard Index Definition

\[ \text{IoU} = \frac{| A \cap B |}{| A \cup B |} = \frac{\text{True Positives}}{\text{True Positives} + \text{False Positives} + \text{False Negatives}} \]
  • A: Set of occupied pixels in the SLAM map.
  • B: Set of occupied pixels in the Ground Truth map.
Value Interpretation
1.0 Perfect Replica
> 0.85 High Fidelity
< 0.60 Distorted / Incomplete Map

🧱 3. Wall Thickness

What it measures:
Sharpness of the map. It detects sensor noise and "double wall" effects.

Intuitive Understanding:
In real life, a wall is solid and thin.

  • Good Map: Walls look like thin, sharp lines (e.g., 5-10cm).
  • Bad Map: Walls look like thick, fuzzy markers or appear as two parallel lines (Double Wall). This happens when the robot is slightly confused about its rotation.
Deep Dive: Math & Algorithm

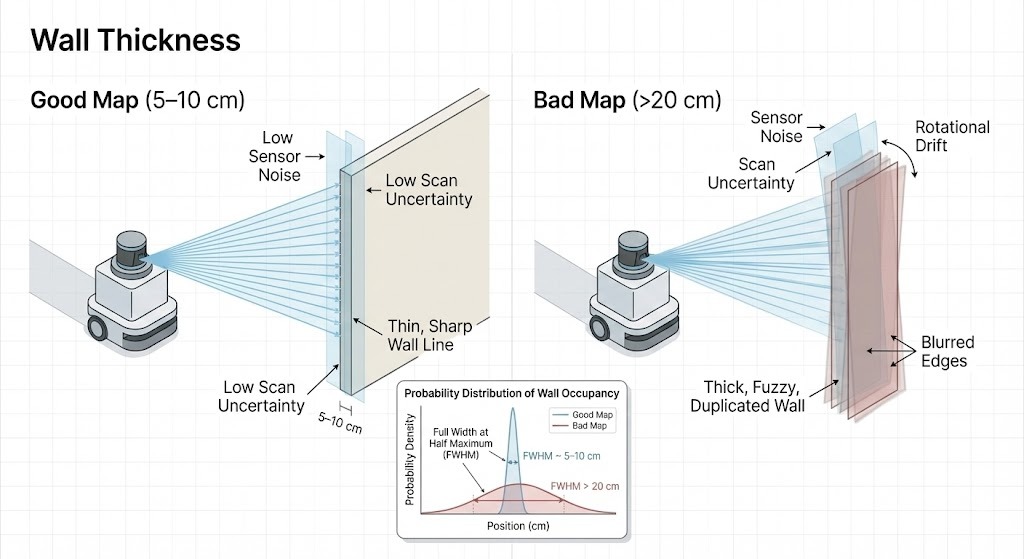

Wall Thickness Illustration

Measurement Algorithm

  1. Edge Detection: Identify wall edges using a Canny edge detector or gradient magnitude.
  2. Orthogonal Scan: For each wall point, measure the distance to free space on both sides (orthogonal to the wall).
  3. FWHM: Compute the Full Width at Half Maximum of the occupancy probability distribution.
\[ \text{Thickness} = \text{Mean}(\text{Wall Widths}) \]
  • Ideal Wall: ~5-10cm (limited by Lidar noise + Grid resolution).
  • Blurred Wall: > 20cm (indicates "Double Wall" effect or high rotational drift).

🖥️ 4. System Resources

This metric tracks the computational efficiency of the SLAM algorithm. Unlike accuracy metrics, this measures cost: how expensive is it to run this algorithm on the robot?

CPU Usage (Computational Load)
This measures the percentage of the robot's processing power dedicated to SLAM.

  • Why it matters: High CPU usage drains the battery faster and can cause the entire system to lag (latency). If the CPU is maxed out (100%), the robot might miss sensor readings or react too slowly to obstacles.
  • Target: We aim for < 50% usage on a single core to ensure there is plenty of headroom for other tasks like path planning and object detection.

RAM Usage (Memory Footprint)
This measures the peak amount of Random Access Memory (RAM) used by the algorithm.

  • Why it matters: If the algorithm uses more memory than available, the system will swap to disk (extremely slow) or crash completely (OOM Kill). Large maps often cause memory spikes.
  • Target: We aim to keep peak usage under 2GB to remain compatible with standard embedded computers (like Raspberry Pi or Jetson Nano).
